Toughpower 600W

home > products > power > toughpower



12V Combined Output 48A	AMD / Intel Dual Core Support	ATX 12V 2.2	EPS 12V	PCI Express Connectors X2	S-ATA Connectors X6

	Complies with ATX 12V 2.2 & EPS 12V version
	Supports Dual Core CPU, ATi CrossFire and all Multi-Core GPU technologies.
	Built in next generation 8-pin PCI-Express graphic card connector.
	Four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 48A).
	Independent Voltage Circuit: offers unflappable current delivery under heavy load.
	Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%).
	Extremely good voltage regulation (±3%): provides steady voltage for system.
	High reliability: MTBF>120,000 hours
	Mirror effect housing and reliable 14cm ball-bearing fan
	Protections: Over Current, Over Voltage, and Short-Circuit protection
	Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified

	Total Output Connector:

24-pin Main Connector
X 1

8-pin +12V Power Connector
X 1

4-pin +12V Power Connector
X 1

4-pin Peripheral Power Connector
X 7

4-pin Floppy Drive Connector
X 2

5-pin S-ATA Connector
X 6

6-pin PCI Express Connector
X 1

8-pin PCI-E Connector X 1

8-pin to 6-pin PCI-E Connector X 1

	Detailed Feature:


Quad +12V Rails and EPS Structure

Mirror Effect Housing

Six S-ATA Connectors

Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

	Performance:

OUTPUT
Voltage	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	-12V	+5VSB
Max. Load	30A	28A	18A	18A	18A	18A	0.8A	3A
Min Load	0.5A	2.0A	1.0A	1.0A	1.0A	1.0A	0A	0A
Peak Load	--	--	--	--	--	--	--	3.5A
Load Reg.	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+9,-5%	+5,-3%
Ripple V(p-p)	50 mV	50 mV	120 mV	120 mV	120 mV	120 mV	120 mV	50 mV

Model	W0103
Maximum Power	600 Watts
Color	Black
Switches	ATX Logic on-off additional power rocker switch
PFC (Power Factor Correction)	Active PFC

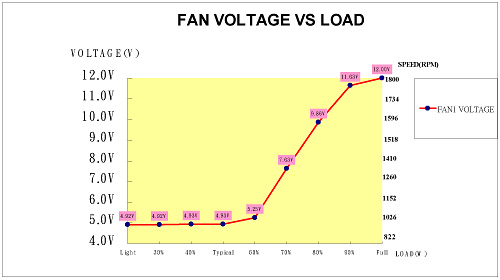

Cooling System	14 cm Fan SPEED: 1900 RPM (±10%) DIMENSION: 140 X 140 X 25 mm AIR FLOW: 82 CFM BEARING TYPE: Two ball-bearing TEMP. AUTO CONTROL
Noise	16dB at 1300RPM
P. G. Signal	100-500 ms
Over Voltage Protection Recycle AC to Reset	+5V 7.0 Vmax +3.3V 4.5 Vmax +12V 15.6 Vmax
Dimensions	16cm(L)x15cm(W)x8.5cm(H)
Net Weight	2.34 kg
Input Voltage	100 VAC~240 VAC
Input Frequency Range	47 ~ 63 Hz
Input Current	115VAC / 8A max. 230VAC / 4A max.
Hold-up Time	16ms

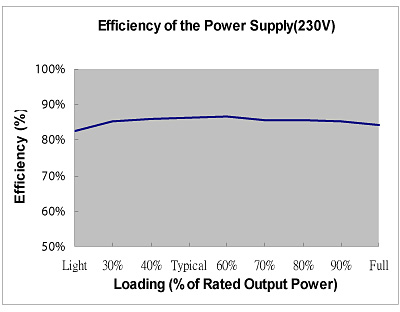

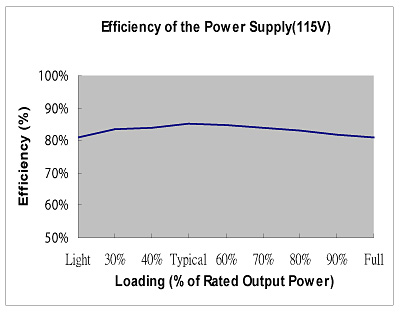

Efficiency	up to 85%
