ATX 12V 2.0 PFC Connector Universal 20+4 Pin
Support Intel processor Support AMD Processor Serial ATA


  Complies with ATX 12V 2.0 Version.
  Support 6-pin PCI-Express, 2 SATA, and 20+4 pin connector.
  PFC function, improved energy efficiency and reduced current load on AC delivery systems.
  Low noise 12cm fan and mirror effect casing.
  Protections against Input Protection, Over Power, Over Voltage, Short-Circuit, and No Load Operation.
  Safety / EMI Approvals: UL, CUL, TUV, CE, and CB certification. (For PFC Version)
UL, CUL, TUV, FCC, and CB certification. (For Non PFC Version)

Detail Information
Technology Features
12 cm FanHigh thermal performance
New 24(20) pin Main Connector
Dual +12V Rails
6 pin PCI-Express Connector
5-pin SATA Connector Mirror Coating

Total Output Connector

24-pin Main Connector
x1

4-pin+12V Power Connector
x1

4-pin Peripheral Power Connector
x8

4-pin Floppy Drive C onnector
x2

5-pin SATA Connector
x2
6-pin PCI Express Connector
x1
Cable Application


Intelligent Cable Management: • Black cable sleeving • Optimum air-flow

Cooling System

12cm Fan Design -
Optimum Air flow and Low Noise

Performance
OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
Max. Load
20A
28A
10A
15A
0.3A
2A
Min. Load
0.5A
0.5A
1.0A
1.0A
0.0A
0.0A
Load Reg.
± 5%
± 5%
± 5%
± 5%
± 10%
± 5%
Ripple
V(p-p)
50mV
50mV
100mV
100mV
150mV
50mV

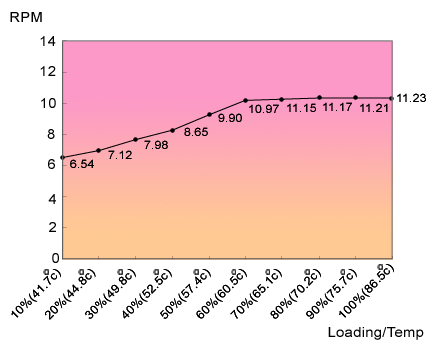

TR2 420W Fan Voltage Control By
Loading/Temp

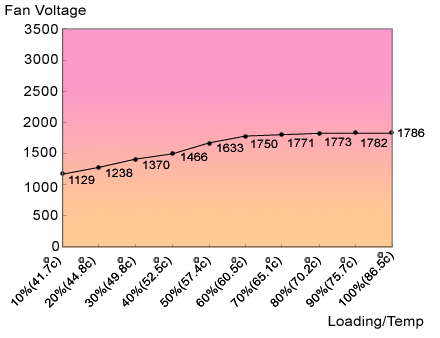

TR2 420W Fan RPMV.S Temp

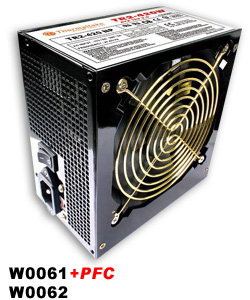

P/N
W0061 W0062
Maximum Power
420 Watts
Switches
ATX Logic on-off additional power rocker switch(115/230 V selector switch)
Color
Black
PFC
(Power Factor Correction)
PFC N/A
Cooling System
One 12cm Fan :
SPEED : 2000 RPM(+/-10%)
DIMENSION : 120 x 120 x 25 mm
TEMP. AUTO CONTROL
1129 rpm at 41.7 ° C~1750 rpm at
60.5 ° C
Noise
19dB at 2000RPM
P. G. Signal
100-500 ms
Over Voltage Protection recycle AC to reset
+5V output 6.25 ± 0.75 V
+3.3V output 4.0 ± 0.30V
+12V output 15.0 ± 0.6V
Dimensions
Unit Size
14cm(L)x15cm(W)x8.6cm(H)
Net Weight
1.80 kg 1.68 kg
Input
Input Voltage
115 VAC / 230 VAC
Input Frequency Range
47 ~ 63 Hz
Input Current
9.0A / 5.0A
Hold-up Time
8ms(minimum) at 80%
Efficiency
> 70%



Over View
Features
Specification
Specification
Specification
Specification
