home > products > chassis > full tower >




Patent Information
Country Patent No.
Taiwan
M 280094
All aluminum front door
Full tower case with built-in liquid cooling system
Utilize thermal concept of automobile and place radiator in front of computer chassis
Offers more extra space within case while radiator in the front door
Minimize installation time with partial pre-assembled liquid cooling components
ATX/BTX compatible (BTX upgrade kit is optional)

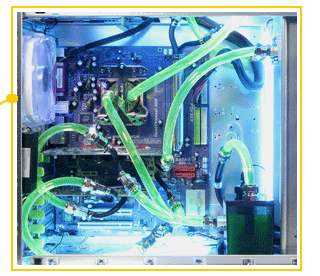

Liquid Cooling System

VGA Liquid Cooling Upgrade

Kandalf LCS supports any future graphic card liquid cooling upgrade,
even nVIDIA SLI and ATi Crossfire.
Recommendation:
Aqua Brazing All Copper series – W2
P/N: CL-W0088
VGA Water Block
P/N: CL-W0038


Appearance
Aggressive front door design Mysterious light in the dark
High expandability: up to nine 5.25” drive bay 5.25” to 3.5” adaptor
Free-flowing design Removable dust filter
Removable Power & Reset Switches Dual USB2.0, IEEE1394, Audio & Speaker ports (support Intel HD Audio connector)
Pre-drilled tube fittings for future upgrades Bushing to protect water tubes from scrape
Screw-less kit for 5.25” drive bays Screw-less for PCI devices
Removable HDD cage Fan brackets for easy remove and install
Accessory box for any small items Thumbscrews for easy removal
Retractable foot stand Side panel lock for security
Anti-EMI PSU support for stability
Spared space to route cables, improve airflow and eliminate clutter


Why Put Radiator in the Front?
Excellent Thermal Design
According to the temp with 25oC outside the chassis, in contrast with 35oC inside, the radiator is designed at front of door instead of inside to have a great improvement in cooling performance.
Space Saving
It offers much more space compared to the radiator inside the case.
Thermal Flow
Most people will concern the heat will stay inside the case because of the front intake fans. It will not be a problem because the heat will be taken out from the gap between the front door and the front bezel.

Fan Allocation

BTX Upgrade Kit(optional,P/N:A9358)



Model VD4000BWS
Case Type Super Tower
Side Panel Transparent Window
Net Weight 21.92 kg
Dimension (H*W*D) 540.0 mm x 220.0 mm x 640.0 mm
Cooling System ‧Rear (exhaust) :
  120x120x25mm blue LED fan, 1300rpm, 17dBA;
  90x90x25mm, 1800rpm, 19dBA
‧Top (exhaust) : 90x90x25mm, 1800rpm, 19dBA
 Drive Bays
-Front accessible
-Internal
Up tp 9 x 5.25”, 2 x 3.5”
6 x 3.5"
Material Chassis: 1.0mm SECC
Front door: Aluminum
Color Black
Expansion Slots 7
Motherboards  Micro ATX, ATX, Extend ATX, BTX
PSU Standard ATX PSII
I/O Ports USB 2.0 x 2, IEEE 1394 x 1, Audio & Speaker ports
BTX Upgrade Kit SRM/Rear plate(option: A9358)
Liquid Cooling System ‧All-in-one waterblock : For Intel BTX platform, P4 775 and AMD K8
‧Performance radiator :
   (A) Dimension of radiator : H 407 x W 120 x D 35 mm
   (B) Three 1300RPM 120mm fans
‧P500 liquid pump : Power DC 12V liquid pump (500L/hr)
‧Reservoir : Contains 350 c.c. of liquid capacity, easy to refill
‧Water tube : Transparent UV tube (3/8”) & industrial-grade
   rubber tube.
Container Load 20’-172,40’-361,40’HQ-412
