home > products > power > toughpower





ATX
12V 2.2
EPS 12V
AMD / Intel
Dual Core Support
12V
Combined Output
52A
PCI Express
Connectors
X3
S-ATA
Connectors
X6
Quiet in Fan

Patent Information
Country Patent No.
Taiwan
M 314373


What is QFan ?

The 140mm QFan features a unique patent designed blade shape and a 360°non-frame, effectively reducing the noise level. The air inlet is designed to increase air flow and reduce the sound of wind shear.(Please see Figure 1, Figure 2)


Non frame 140mm QFan( Figure 1 )


Standard 140mm Fan( Figure 2)

Why use QFan ?

The QFan special five way air-intake housing design creates the best heat dissipation environment for the non-frame 140mm QFan at minimal noise level. Therefore, the fan at low speed setting yield a 17.1 dBA without compromising performance.
(Please see Figure 3, Figure 4, Figure 5)



Surround opening housing
( Figure 3 )


Standard housing QFan
( Figure 4)

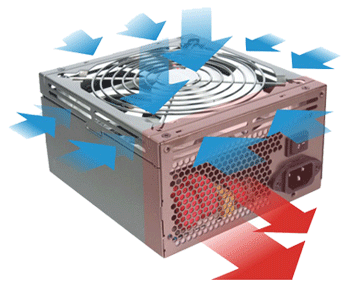

Word 1st 5-way air intake housing not only increase air flow
but also decrease the noise level. Thus, this unique & patented design
yield incredible 17.1 dB noise level.( Figure 5)

How QFan performances ?

The 140mm QFan effectively decrease the noise level inside the PSU.
The reportas below:


Standard Fan dB(A)
QFan dB(A)

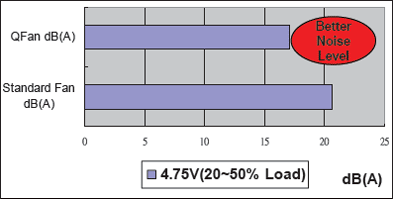

4.75V(20~50% Load)
20.7
17.1

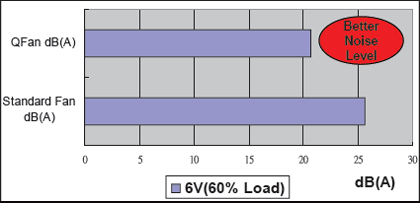

6V(60% Load)
25.6
20.7

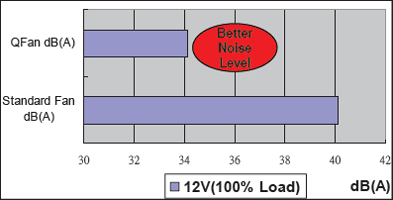

12V(100% Load)
40.1
34.1


140mm QFan & standard Fan comparison chart


The 140mm ball bearing QFan effectively decreases the noise level inside the PSU. Performance report as below:








Standard Fan
QFan

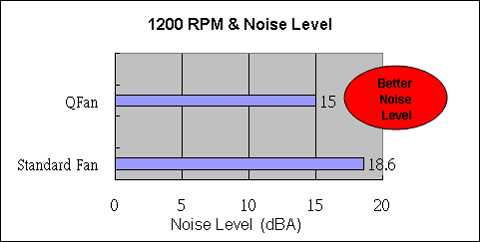

1200 RPM
18.6
15

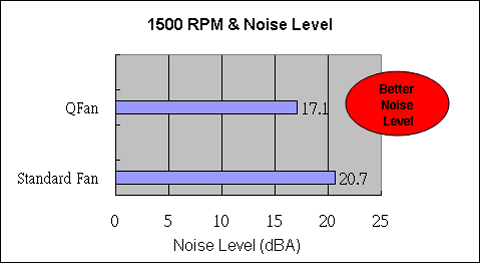

1500 RPM
20.7
17.1






Extremely Quiet 140mm ball-bearing fan decreases 17% noise level
Stable 650W continuous output (at 50℃ operating environment)
Complies with ATX 12V 2.2 & EPS 12V 2.91 version
Four independent & dedicated +12V rails (12V1,12V2,12V3, 12V4) provide stable
and superior performance for PC system (combined loading of 52A).
Supports Dual Core CPU and all Multi-Core GPU technologies.
Modularized Cable Management to eliminate clutter and improve airflow inside the case.
Independent Voltage Circuit: offers unflappable current delivery under heavy load.
Strict voltage regulation (±3%): provides steady voltage for system.
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%).
Protections: Over Current, Over Voltage, and Short-Circuit protection.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

Total Output Connector:
20+4 pin Main
Connector X 1
8-pin PCI-E
Connector X 1
4-pin Peripheral
Connector X 7
Floppy
Connector X 2
6-pin PCI-E
Connector X 2
5-pin S-ATA
Connector X 6
8-pin / 4-pin Power
Connector X 1
8-pin to 6-pin PCI-E
Connector X 1


Technology Features:
Special design of non-frame cooling fan
Unique Housing design: Multi-directional air intake increases airflow
while keeping the extreme low acoustic noise.

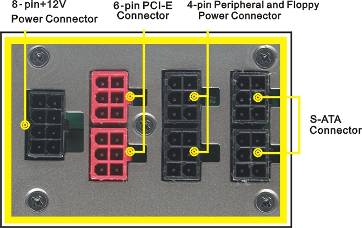

Embedded Socket Design:






Model
W0163
Power
650W
Dimension
150mm(L)x160mm(W)x86mm(H)
Net Weight
2.04 Kg
Switches
ATX Logic on-off additional power rocker switch
PFC
Active PFC (PF > 0.99)
Cooling System
140mm QFan
SPEED: 1900 ± 10% RPM
AIR FLOW: 93 CFM
BEARING TYPE: Two Ball Bearing
Temp. Auto Control
Noise
17 dBA at 20% ~50% Loading
P. G. Signal
100-500 ms
Efficiency
Up to 85%
Hold-up Time
16ms at 80% of full load

Input Voltage
115 VAC ~ 230 VAC
Input Frequency Range
47 ~ 63 Hz
MTBF
120,000 hrs minimum
Input Current
100Vac / 8.0A max. 200Vac / 4.0A max.

Operating Temp.
10 ℃ to 50 ℃
Storage Temp.
-20 ℃ to 70℃
Operating Humidity
20% to 90%, non-condensing
Storage Humidity
5% to 95%, non-condensing

DC rail
Trigger Point/Range
Over Voltage Protection
+3.3V trip point
4.5 Vmax
+5.0V trip point
7.0 Vmax
+12.0V trip point
15.6 Vmax
Over Current Protection
Not over 240VA for +5V & +3.3V output voltage
21A to 29A for +12V rails
Short Protection
All output to GND

AC INPUT
115V/ 230V 8/4A 47~63Hz
DC OUTPUT
+3.3V
+5V
+12V1
+12V2
+12V3
+12V4
-12V
+5VSB
Max Output Current
30A
28A
18A
18A
18A
18A
0.8A
3A
Min Current
0.5A
2A
1.0A
1.0A
1.0A
1.0A
0.0A
0.0A
Peak Current
--
--
--
--
--
--
--
3.5A
Max Combined Wattage
99W
140W
624W
9.6W
15W

The continuous total output power is 650W, peak 750W(60 Sec).
The combined power of +5V & +3.3V is 180W max.
Total combined +12V output load not exceed 52A.
