> power > purepower
ATX 12V 2.0
PCI Express X 1
S-ATA X 4
AMD/Intel
Complies with ATX 12V 2.0 version.
Supports PCI-Express, 4 S-ATA, and 24-pin detachable main power connector.
Special design external aluminum housing and internal heat-sink for maximum heat dissipation.
Dual power output: 380W without fan, 520W with 8cm cooling fan.
Active Power Factor Correction (PF>0.99) and high efficiency (80%).
Fanless design for ultra silent computing. Three selectable fan switch for quiet computing under higher loads: 40℃, 45℃, or 55℃.
Gold-plated connector for better conductivity.
Protections: Over Current, Over Voltage, Short-Circuit, Under Voltage, Overload, and Over-temperature.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, and CUL certification.
Total Output Connector :
24-pin Main
Connector X 1
4-pin +12V Power Connector X1
8-pin +12V Power Connector X 1
4-pin Peripheral Power Connector X 7
4-pin Floppy Drive Connector X 2
5-pin S-ATA
Connector X 4
6-pin PCI Express
Connector X 1
Technology Features :
Dual +12V Rails and High Quality Components
Aluminum Housing for Maximum Heat Dissipation
Four S-ATA Connectors

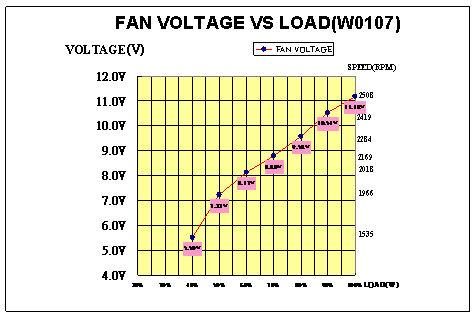

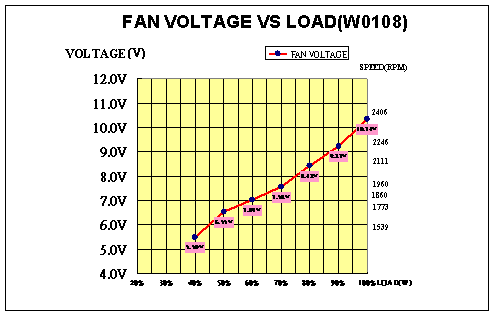

Silent 80mm Fan with 3-position fan switch for Different Temperature
Cable Application:
Intelligent Cable Management:
All cables with black cable sleeving
Optimum air-flow in the chassis
Performance:
OUTPUT
Watt
Voltage
+3.3V
+5V
+12V
1
+12V
2
-12V
+5VSB
520W
Max. Load
30A
30A
17A
18A
0.5A
2.0A
520W
Min. Load
0.3A
0.3A
0.3A
0.3A
0A
0A
380W
Max. Load
28A
30A
16A
18A
0.5A
2.0A
Load Regulation
+5,-5%
+5,-5%
+5,-5%
+5,-5%
+5%,-8%
+5%,-4%
Ripple & Noise
50 mV
50 mV
120 mV
120 mV
120 mV
50 mV
P/N
W0107
W0108
Maximum Power
520 Watts (with Fan)
380 Watts (without Fan)
Color
Black
Switches
ATX Logic on-off additional power rocker switch
PFC (Power Factor Correction)
Active PFC
N/A
Cooling System
8 cm Fan
SPEED: 2500(±10%) RPM
DIMENSION: 80 X 80 X 15 mm
AIR FLOW: 26.01 CFM
Noise
19dB at 2000 RPM
P. G. Signal
100-500 ms
Over Voltage Protection Recycle AC to Reset
+5V 5.7Vmin / 6.2 Vmax
+3.3V 3.7Vmin / 4.1Vmax
+12V1&+12V2 13.3Vmin / 14.3Vmax
DIMENSIONS
Unit Size
16cm(L)x14.8cm(W)x8.5cm(H)
Net Weight
2.9 kg
2.85 kg
INPUT
Input Voltage
207-253V
90-135V/180-264V
Input Frequency Range
47 ~ 63 Hz
Input Current
5A/230V
9A/115V, 5A/230V
Hold-up Time
20ms
Efficiency
80%(min.)
