Tai-Chi - VB5001SNA

home > products > chassis > full tower >


Compatible w/ Lquid Cooling	Easy Connection	Copper Made	Universal	UV Tube


USB 2.0	IEEE 1394	Audio & Speaker	Fanless Application	Tool-free	12 cm LED Fan	9 cm Fan	Accessory Box

ATX Motherboard	BTX Motherboard	5.25" Drives	AL Extrusion	Removable M/B tray	Wheels	Auto-open Side Panel

Patent Information
Country	Patent No.
Taiwan	D 111572 / M 271193 / M 271194 / M 279912
China	ZL 2005 3 0019562.2

	All aluminum extrusion built chassis
	Compact and stylish chassis
	BTX & ATX compatible
	Better choice for upgrading liquid cooling system
	Hydraulic side panel opening
	Tool-free installation
	Optimize internal space and airflow
	Support to 11 5.25'' drive bays
	Relocate-able front control panel (Power, Reset switch, HDD & PWR LEDs)
	Removable aluminum motherboard tray
	Easy Lifting Handles

liquid Cooling System

	Retaining holes for liquid cooling kits
	Optimize internal space for installing liquid cooling system

Waterblock:
	All copper base with blue LED acrylic cover

	Apply to Intel LGA775 / 478, AMD K8 / K7, enclosed universal clips

Water tube:
Transparent green pipes

Cooling system:

Dual 1300 rpm, 12 x12 x2.5 cm fans, 17dBA

Performance radiator dimension: H 27 x W 22 x D 3.3 cm

Powerful pump:
	DC 12V liquid pump
	Flow rate:84 L/ hr

Refill liquid tank:
Easy to refill the coolant

Innovation Design

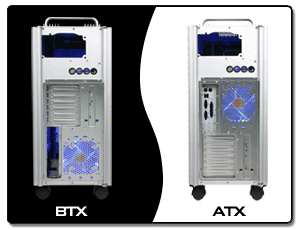

Compatible with ATX and BTX

ATX / BTX form factor compatibility:

	fits Intel ATX(12''x9.6''), micro ATX(9.6''x9.6'')
	fits Intel BTX (10.5 '' x12.8 '' ), micro BTX(10.5 '' x10.4 '' ), pico BTX(10.5 '' x8 '' )

BTX Upgrade Kit (Option) P/N: A9449


BTX Rear Plate	BTX SRM	BTX Upgrade Kit Package (Rear Plate and SRM only)

Inside Structure

Inside Structure

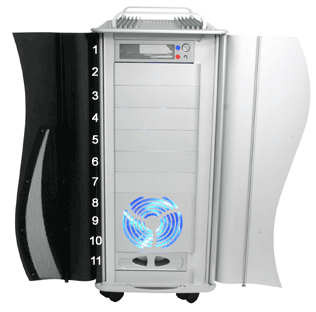

Drive Bays	11
Front Accessible	10 x 5.25", 1 x 3.5"
Internal	3 x3.5"

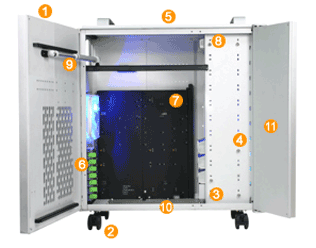

Detailed Features

Extra large thumb screws for easy open side panel

Wheels stands with brake

Built-in 5.25"drive bay accessory box

3 x 3.5'' HDD module with 12 cm blue LED fan

Dual USB 2.0, IEEE 1394 Firewire, Audio & Speaker ports

Screwless slots for easy assembling

Removable mother board tray

Tool-free installation for 5.25'' device

Hydraulic opening

Ventilation opening on foundation of chassis

Front opening for air flow

Model

Tai-Chi --- VB5001SNA (with liquid cooling system)

Case Type

Super Tower

Net Weight

19.7Kg

Dimension

600 x 263 x 546 mm (H*W*D)

Drive Bays

11
Front Accessible	10 x 5.25", 1 x 3.5"
Internal	3 x3.5"

Material

Aluminum Extrusion

Color

Silver & Black

Expansion Slots

7

Motherboards

Micro ATX, ATX, BTX , Micro BTX, Pico BTX

BTX Upgrade Kits

SRM / Rear plate (optional)

Liquid Cooling
system application

Liquid Cooling system

4 in 1 universal waterblock: All copper base with blue LED, and universal clips

Cooling system: Dual 1300rpm 12 cm fan with performance radiator

12V liquid pump: Powerful DC 12V liquid pump (84 L /Hour)

Liquid Tank: Easy to refill the coolant

Water tubes: Transparent green water pipes

Case fan

Front (intake): 120x120x25 mm, Blue LED Fan, 1300rpm, 17dBA

Rear (exhaust): 120x120x25 mm, Blue LED Fan, 1300rpm, 17dBA

Features

All aluminum extrusion built chassis

Compact and stylish chassis

BTX & ATX compatible

Better choice for upgrading liquid cooling system

Hydraulic side panel opening

Tool-free installation

Optimize internal space and airflow

Support to 11 5.25'' drive bays

Relocate-able front control panel (Power, Reset switch, HDD & PWR LEDs)

Removable aluminum motherboard tray

Easy Lifting Handles
